Structure Features :
The mechanical seal adopts a single-end face, multiple springs (or wave springs), and an unbalanced cartridge structure. The end face load is uniform, the rotation direction is not limited, and the installation is convenient and reliable.
The flushing scheme can use PLAN11 + 61 (62).
Operating Range:
Mediums: oil, water, acid, alkali, salt and other corrosive medium.
Pressure: ≤1.6Mpa
Temperature: -40℃~220℃
Linear Speed: ≤20m/s

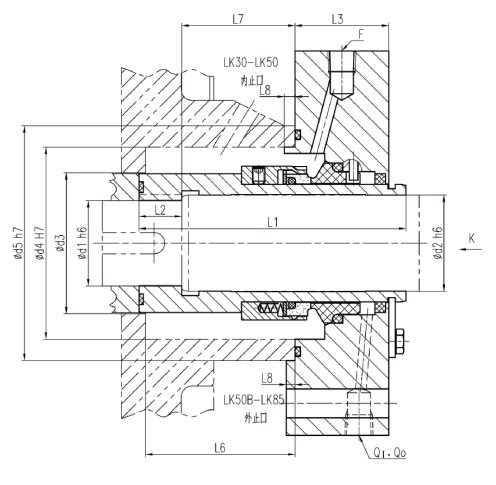

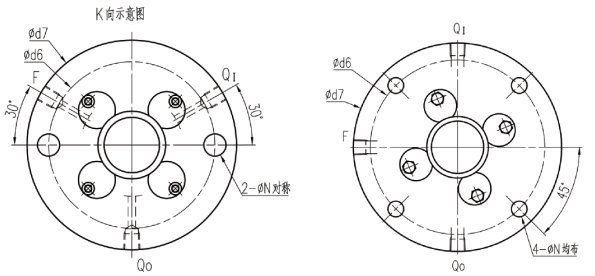

| Model | d1 | d2 | d3 | d4 | d5 | d6 | d7 | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | N |
| LK30 | 20 | 25 | 39 | 60 | - | 100 | 128 | 108 | 20 | 36 | 6 | 21.9 | 62 | 45 | 4 | 14 |
| LK40 | 30 | 35 | 51 | 74 | - | 115 | 140 | 116 | 20 | 40 | 8 | 33.3 | 65 | 48 | 5 | 14 |
| LK50 | 40 | 45 | 66 | 90 | - | 135 | 170 | 120 | 20 | 45 | 10 | 42.9 | 65 | 48 | 4 | 18 |
| LK50B | 40 | 45 | 66 | 90 | 110 | 150 | 180 | 125 | 20 | 44 | 10 | 42.9 | 70 | 53 | 4 | 14 |
| LK60 | 48 | 55 | 76 | 100 | 120 | 160 | 187 | 147 | 20 | 42 | 10 | 50.9 | 87 | 77.5 | 3 | 14 |
| LK70 | 60 | 68 | 91 | 120 | 145 | 180 | 215 | 146 | 30 | 49 | 12 | 62.9 | 87 | 59 | 3 | 18 |
| LK85 | 75 | 82 | 106 | 130 | 160 | 190 | 230 | 149 | 30 | 49 | 16 | 78.3 | 87 | 62 | 4 | 22 |
