Structure Features :
The mechanical seal size complies with API 682. The mechanical seal adopts a double-end face, multi-spring, balanced cartridge structure, compact axial dimension, uniform end face load, unlimited rotation direction, and convenient and reliable installation, PLAN 52/53/54 can be used for the flushing scheme.
Operating Range:
Mediums: Suitable for transporting flammable, explosive, toxic, and hazardous dangerous media.
Pressure: ≤4Mpa
Temperature: ≤-40℃~220℃
Linear Speed: ≤20m/s

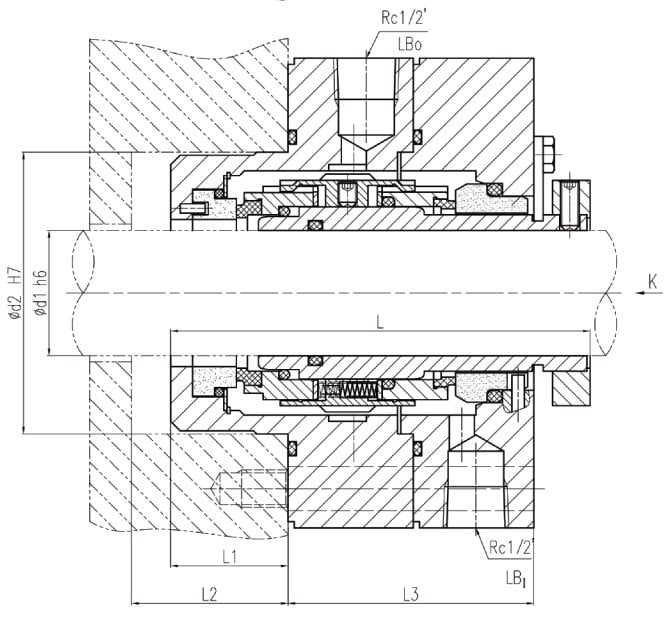

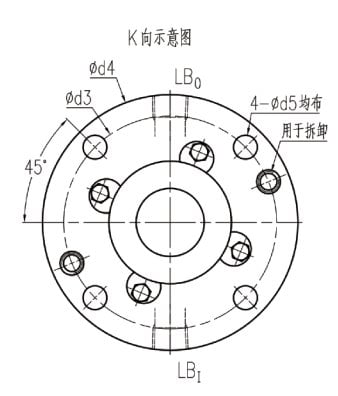

| Shaft Dia. | d1 | d2 | d3 | d4 | d5 | L | L1 | L2 | L3 |
| 20 | 20 | 70 | 105 | 129 | 14 | 127 | 30 | 50 | 79 |
| 30 | 30 | 80 | 115 | 139 | 14 | 130 | 33 | 55 | 79 |
| 40 | 40 | 90 | 125 | 149 | 14 | 135 | 38 | 60 | 79 |
| 50 | 50 | 100 | 140 | 168 | 18 | 142 | 38 | 55 | 85 |
| 60 | 60 | 120 | 160 | 188 | 18 | 151 | 47 | 60 | 85 |
| 70 | 70 | 130 | 170 | 198 | 18 | 156 | 52 | 65 | 85 |
| 80 | 80 | 140 | 180 | 208 | 18 | 160 | 56 | 70 | 85 |
| 90 | 90 | 160 | 205 | 238 | 22 | 160 | 46 | 65 | 95 |
| 100 | 100 | 170 | 215 | 248 | 22 | 169 | 55 | 70 | 95 |
| 110 | 110 | 180 | 225 | 258 | 22 | 169 | 55 | 75 | 95 |
