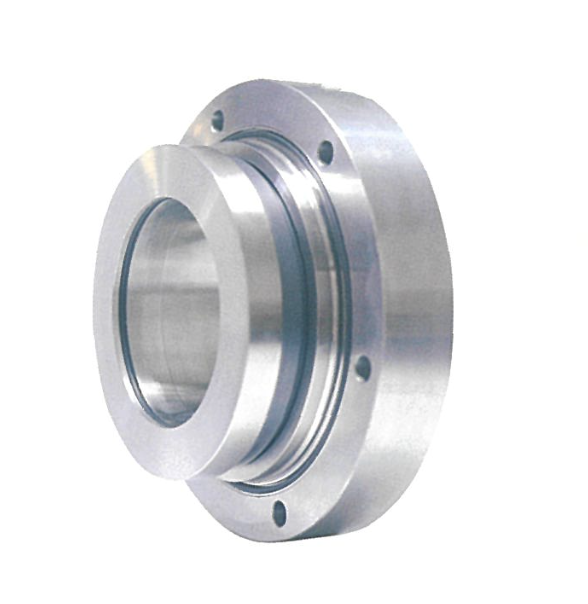

Structure Features :
Single-end balanced mechanical seal, convenient and reliable installation, large spring (multi-spring) externally does not contact the medium and adopts an open sealed cavity. The pressure of external flushing water (API682 Plan62 flushing plan) is less than or equal to 0.05MPa, and the rapid cooling fluid is kept unobstructed and uninterrupted.
Operating Range:
Mediums: medium with high impurity content such as gypsum and lime slurry, solid content<30% (w)t
Pressure: ≤1.6Mpa
Temperature: ≤80℃ (150℃)
Linear Speed: ≤10m/s
| No. | Pump Model | ∅d | ∅d1 | ∅d0 | ∅D | L | L1 | n-∅d2 |
| 3 | DT65-40 | 140 | 210 | 245 | 275 | 157 | 67 | 6-∅14 |
| DT80-36 | ||||||||
| DT100-35 | ||||||||
| 3 | DT65-40 | 165 | 253 | 300 | 340 | 169 | 71 | 6-∅18 |
| DT80-36 | ||||||||
| DT100-35 | ||||||||
| 3 | DT65-40 | 180 | 275 | 320 | 350 | 175 | 72 | 6-∅18 |
| DT80-36 | ||||||||
| 3 | DT65-40 | 220 | 330 | 380 | 410 | 190 | 75 | 8-∅18 |
| DT80-36 |
A: We deliver customized sealing solutions to diverse industrial sectors,including:
·Oil and Gas
·Refining
·Chemical and Petrochemical
·Water and Wastewater Treatment
·Pharmaceutical
·Power Generation
·Marine
Our products are designed to perform reliably in demanding environments across multiple industries.
A: HQ Seals provides custom sealing solutions customized for your working conditions. We manufacture seals according to:
· Technical drawings
· Physical samples
· Special material & performance specifications
· Non-standard sizes
We maintain close communication with clients to guarantee all finished products satisfy operational and environmental requirements.
A: First, identify the optimal configuration (single or double seal) according to the process fluid. Then verify operating parameters — pressure, temperature and shaft speed — to select the appropriate seal type and materials. Lastly, confirm available installation dimensions, and opt for either a component or cartridge seal subject to customer requirements and relevant standards. Seal selection is normally carried out by qualified technicians.
A: For mechanical seals that have been stored for a long period: we can grind the rotating and stationary rings, replace secondary sealing O-rings, conduct air tightness testing and issue the pressure test report.
We can provide on-site installation guidance service. For failed mechanical seals, we are able to deliver failure analysis reports.
A: Yes, repairs are available. Depending on the damage condition of the mechanical seal, we classify the overhaul into Level 1, Level 2 and Level 3 repair.
