Adopt US‑originated Sealol edge‑welded bellows technology
The mechanical seal size complies with API682. The mechanical seal adopts a single-end face, metal bellows, and a balanced cartridge-type structure. The end face loads are uniformly rotated in any direction, which is convenient and reliable. The flushing scheme can adopt PLAN11 +61(62), of which PLAN 11 adopts a multi-point flushing.
Structure Features :
The mechanical seal size complies with API682. The mechanical seal adopts a single-end face, metal bellows, and a balanced cartridge-type structure. The end face loads are uniformly rotated in any direction, which is convenient and reliable. The flushing scheme can adopt PLAN11 +61(62), of which PLAN 11 adopts a multi-point flushing.
Operating Range:
Mediums: Suitable for petroleum, chemical industry, and liquefied petroleum gas, weak acid, alkali, salt, and medium containing a small number of particles.
Pressure: ≤4Mpa
Temperature: ≤-40℃~220℃
Linear Speed: ≤20m/s

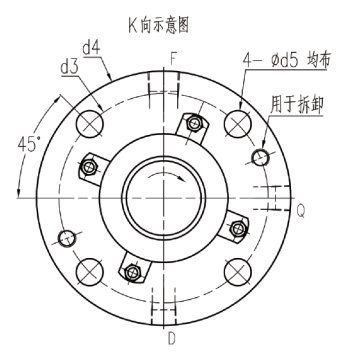

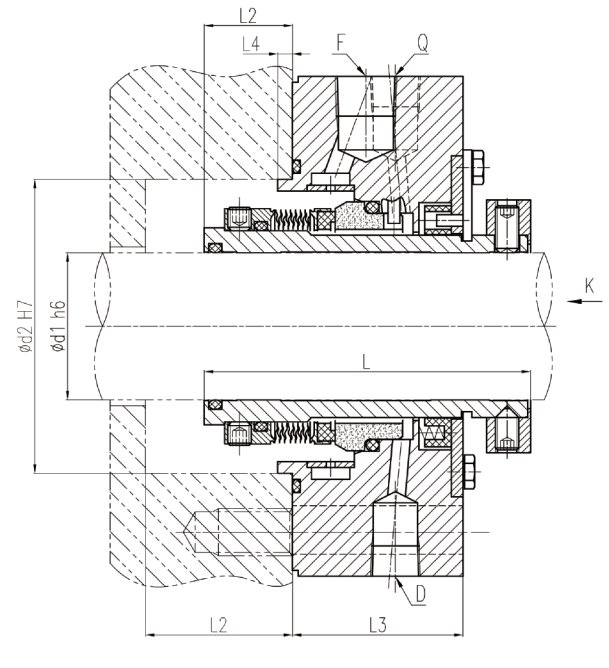

| Shaft Dia. | d1 | d2 | d3 | d4 | d5 | L | L1 | L2 | L3 | L4 |
| 20 | 20 | 70 | 105 | 129 | 14 | 96 | 50 | 28 | 50 | 5 |
| 30 | 30 | 80 | 115 | 139 | 14 | 98 | 55 | 28 | 52 | 5 |
| 40 | 40 | 90 | 125 | 149 | 14 | 98 | 60 | 28 | 52 | 5 |
| 50 | 50 | 100 | 140 | 168 | 18 | 112 | 55 | 31 | 58 | 5 |
| 60 | 60 | 120 | 160 | 188 | 18 | 119 | 60 | 36 | 60 | 5 |
| 70 | 70 | 130 | 170 | 198 | 18 | 125 | 65 | 36 | 60 | 5 |
| 80 | 80 | 140 | 180 | 208 | 18 | 125 | 70 | 42 | 60 | 5 |
| 90 | 90 | 160 | 205 | 238 | 22 | 125 | 65 | 42 | 60 | 5 |
| 100 | 100 | 170 | 215 | 248 | 22 | 135 | 70 | 47 | 65 | 5 |
| 110 | 110 | 180 | 225 | 258 | 22 | 135 | 75 | 47 | 65 | 5 |
