Structure Features :

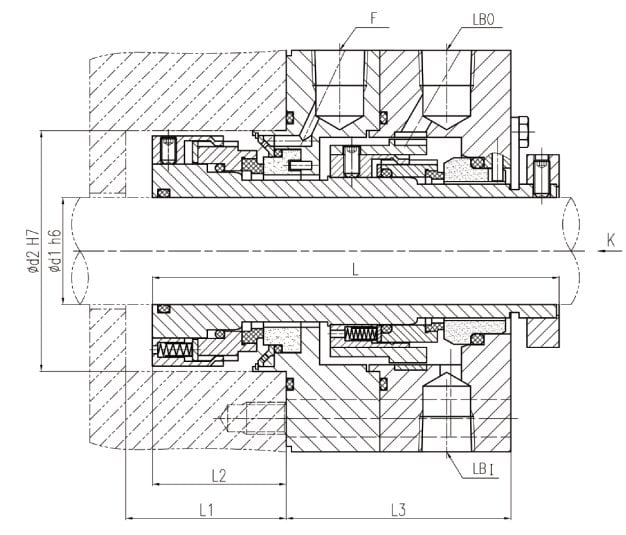

The mechanical seal size complies with API 682. The mechanical seal adopts a double-end face, multiple springs, and a balanced cartridge structure. The end face load is uniform, the rotation direction is not limited, and the installation is convenient and reliable. The flushing scheme can adopt PLAN 11 +52 (53), of which PLAN 1 uses a multi-point flushing structure.
Operating Range:
Mediums: Suitable for transporting flammable, explosive, toxic and hazardous dangerous media.
Pressure: ≤4Mpa
Temperature: ≤-40℃~220℃
Linear Speed: ≤20m/s

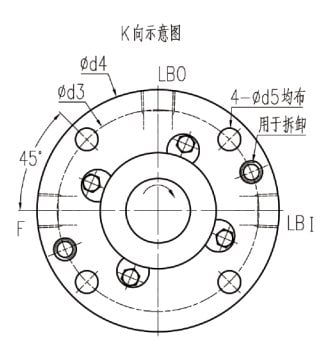

| Shaft Dia. | d1 | d2 | d3 | d4 | d5 | L | L1 | L2 | L3 |
| 20 | 20 | 70 | 105 | 129 | 14 | 144 | 50 | 47 | 79 |
| 30 | 30 | 80 | 115 | 139 | 14 | 147 | 55 | 50 | 79 |
| 40 | 40 | 90 | 125 | 149 | 14 | 147 | 60 | 50 | 79 |
| 50 | 50 | 100 | 140 | 168 | 18 | 158 | 55 | 52 | 88 |
| 60 | 60 | 120 | 160 | 188 | 18 | 166 | 60 | 57 | 90 |
| 70 | 70 | 130 | 170 | 198 | 18 | 167 | 65 | 62 | 90 |
| 80 | 80 | 140 | 180 | 208 | 18 | 175 | 70 | 67 | 90 |
| 90 | 90 | 160 | 205 | 238 | 22 | 179 | 65 | 62 | 98 |
| 100 | 100 | 170 | 215 | 248 | 22 | 185 | 70 | 67 | 98 |
| 110 | 110 | 180 | 225 | 258 | 22 | 188 | 75 | 72 | 98 |
