Structure Features :
Double-end cartridge mechanical seal, a convenient and reliable installation, the medium-end spring does not contact the medium, which can effectively prevent the blockage of foreign particles; a tandem double-end cartridge mechanical seal that can bear pressure in both directions and is protected by the spring can be used for Plan54, 55 rinse program.
Operating Range:
Mediums: Suitable for conveying liquid pulp and fiber slurry containing highly suspended solid particles (such as ore mortar, slime, mud, etc.).
Pressure: ≤1.6Mpa
Temperature: ≤80℃ (150℃)
Linear Speed: ≤10m/s
Solid content: ≤40% (wt)

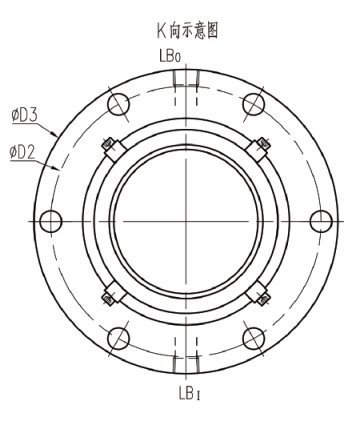

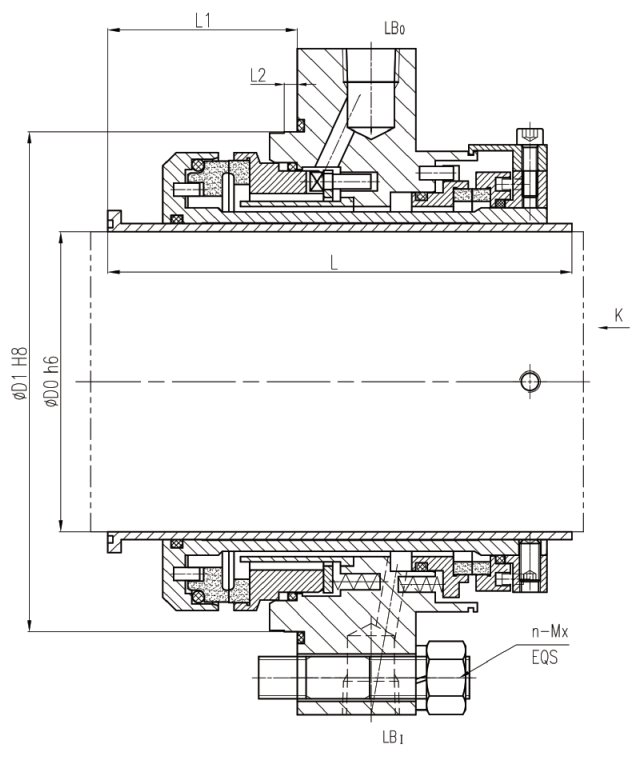

| No. | ∅D0 | ∅D1 | ∅D2 | ∅D3 | L | L1 | L2 | n | x |
| 1 | 25 | 70 | 90 | 105 | 115 | 43 | ＞5 | 4 | 8 |
| 2 | 35 | 80 | 134 | 148 | 115 | 40 | 3 | 8 | |
| 3 | 40 | 108 | 147 | 168 | 125 | 55 | 6 | 12 | |
| 4 | 50 | 103 | 135 | 157 | 125 | - | 4 | 12 | |
| 5 | 60 | 110 | 144 | 165 | - | - | 4 | 12 | |
| 6 | 65 | 120 | 150 | 170 | 143 | - | 4 | 12 | |
| 7 | 70 | 125 | 155 | 140 | - | - | - | - | |
| 8 | 75 | 143 | 175 | 195 | 185 | 97 | 6 | 10 | |
| 9 | 80 | 140 | 180 | 196 | 170 | 70 | 6 | 12 | |
| 10 | 85 | 142.8 | 175 | 195 | 166 | - | 6 | 10 | |
| 11 | 90 | 150 | 190 | 210 | - | - | 6 | 10 | |
| 12 | 95 | 160 | 200 | 217 | 185 | 70 | 6 | 12 | |
| 13 | 100 | 165 | 205 | 225 | - | - | 6 | 12 | |
| 14 | 105 | 170 | 210 | 230 | - | - | 6 | 12 | |
| 15 | 110 | 180 | 220 | 240 | - | - | 6 | 12 | |
| 16 | 115 | 185 | 225 | 245 | 200 | 75 | 6 | 12 | |
| 17 | 120 | 200 | 235 | 255 | - | - | 6 | 12 | |
| 18 | 125 | 218 | 250 | 266 | 205 | 90 | 6 | 12 | |
| 19 | 200 | 285 | 330 | 360 | - | - | 6 | 16 |
A: We deliver customized sealing solutions to diverse industrial sectors,including:
·Oil and Gas
·Refining
·Chemical and Petrochemical
·Water and Wastewater Treatment
·Pharmaceutical
·Power Generation
·Marine
Our products are designed to perform reliably in demanding environments across multiple industries.
A: HQ Seals provides custom sealing solutions customized for your working conditions. We manufacture seals according to:
· Technical drawings
· Physical samples
· Special material & performance specifications
· Non-standard sizes
We maintain close communication with clients to guarantee all finished products satisfy operational and environmental requirements.
A: First, identify the optimal configuration (single or double seal) according to the process fluid. Then verify operating parameters — pressure, temperature and shaft speed — to select the appropriate seal type and materials. Lastly, confirm available installation dimensions, and opt for either a component or cartridge seal subject to customer requirements and relevant standards. Seal selection is normally carried out by qualified technicians.
A: For mechanical seals that have been stored for a long period: we can grind the rotating and stationary rings, replace secondary sealing O-rings, conduct air tightness testing and issue the pressure test report.
We can provide on-site installation guidance service. For failed mechanical seals, we are able to deliver failure analysis reports.
A: Yes, repairs are available. Depending on the damage condition of the mechanical seal, we classify the overhaul into Level 1, Level 2 and Level 3 repair.
