Avoiding Downtime: Seal Solutions for Top-Entry Agitators

Maximizing Equipment Availability in Industrial Mixing Systems

Industrial processes rely heavily on consistent performance, particularly in sectors such as chemical manufacturing, food production, and pharmaceuticals. One of the most critical components in these operations is the mixing system, where top-entry agitators are widely used for their ability to handle a wide range of viscosities, volumes, and tank configurations. However, the effectiveness of these agitators is deeply dependent on the reliability of their sealing systems. A poorly performing seal can lead to leaks, contamination, and most critically—unplanned downtime. Implementing effective seal solutions for top-entry agitators is not just a technical choice, but a strategic investment in process uptime and long-term operational success.

Understanding the Functional Role of Top-Entry Agitators

Structural and Mechanical Design Advantages

Top-entry agitators are installed vertically through the top of a mixing vessel, making them ideal for tanks that require direct drive access or easy servicing from above. This design allows for efficient mixing in both low- and high-viscosity applications, with precise control over agitation speed and flow patterns. The vertical alignment helps manage large volumes and deep tanks while minimizing the space footprint of the system.

Because of their configuration, top-entry agitators exert a vertical load on the shaft seal, which differs from side-entry configurations that apply more radial stress. This mechanical difference makes the sealing system unique in design and function. The agitator seal must accommodate axial movement, misalignment, and potentially high downward thrust, especially in high-speed or high-viscosity processes.

Application Flexibility Across Industries

Top-entry agitators are used in a wide range of industries, including food and beverage, cosmetics, petrochemicals, and biopharmaceuticals. Their versatility allows them to handle solid suspensions, emulsions, slurries, and even shear-sensitive liquids. This widespread use makes the selection and maintenance of compatible sealing systems all the more important.

In industries that require clean-in-place (CIP) or sterilization-in-place (SIP), seal systems for top-entry agitators must also support hygiene protocols, tolerate temperature cycling, and meet compliance standards. Whether in hygienic or heavy-duty chemical environments, these agitators demand robust, adaptable seals to remain operational with minimal intervention.

Key Seal Challenges in Top-Entry Agitator Systems

Axial Load and Shaft Misalignment

Due to the vertical installation, top-entry agitators typically exert more axial force on the seal than other configurations. These loads, combined with possible shaft misalignment or deflection during mixing, can lead to uneven wear on the sealing faces. Over time, this may result in leakage, face damage, or loss of containment.

To counter this, seal designs must accommodate axial float and shaft wobble without compromising sealing performance. Features such as flexible bellows, robust bearings, and floating face technology enhance durability under dynamic shaft conditions. Seal faces should also be optimized to tolerate occasional load spikes without cracking or glazing.

Exposure to Temperature and Pressure Cycles

Top-entry agitators often operate in environments with frequent temperature and pressure variations. These changes may occur due to product heating, cleaning procedures, or process cycling. When seals are exposed to repeated expansion and contraction, material fatigue and seal distortion can occur.

Using thermally stable materials like PTFE, Kalrez, or advanced ceramics helps reduce the effects of thermal cycling. Additionally, seals for top-entry agitators can be designed with thermal compensators or venting systems to relieve internal pressure and prevent deformation.

Selecting the Right Seal Solutions

Single vs. Double Mechanical Seals

The choice between single and double mechanical seals depends on the process conditions and the nature of the materials being mixed. Single mechanical seals are often suitable for non-hazardous, low-viscosity applications where leakage is not critical. They are simpler and cost-effective, but offer limited protection in demanding environments.

In contrast, double mechanical seals provide a secondary barrier and are essential in processes involving flammable, toxic, or sterile media. These seals are pressurized with barrier fluids, which prevent product ingress and enhance seal lubrication. For top-entry agitators operating under critical process conditions, double seals are a preferred choice for maximizing uptime and minimizing maintenance.

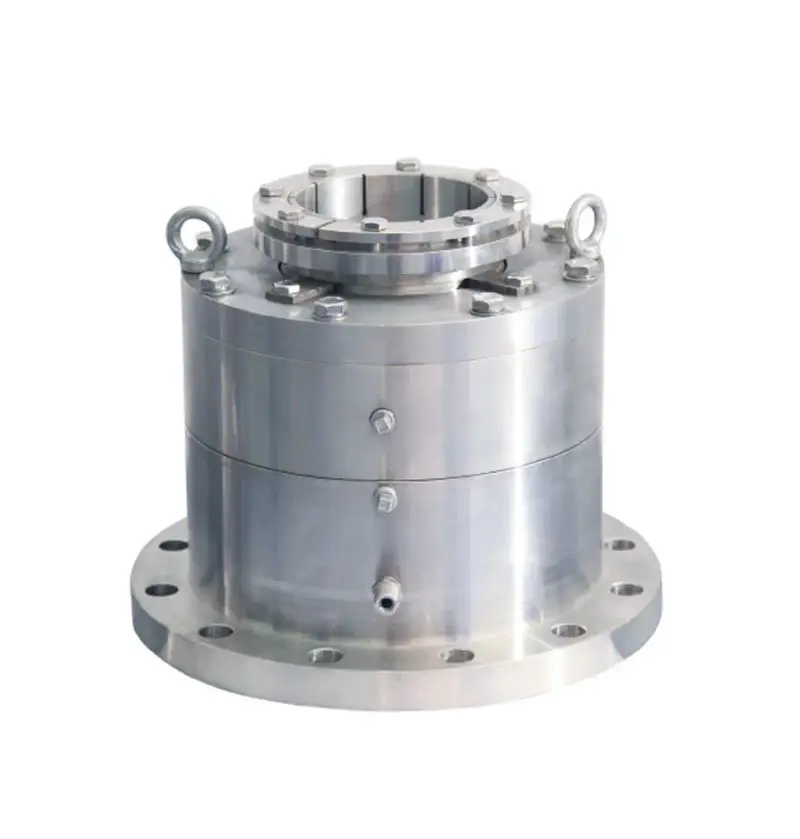

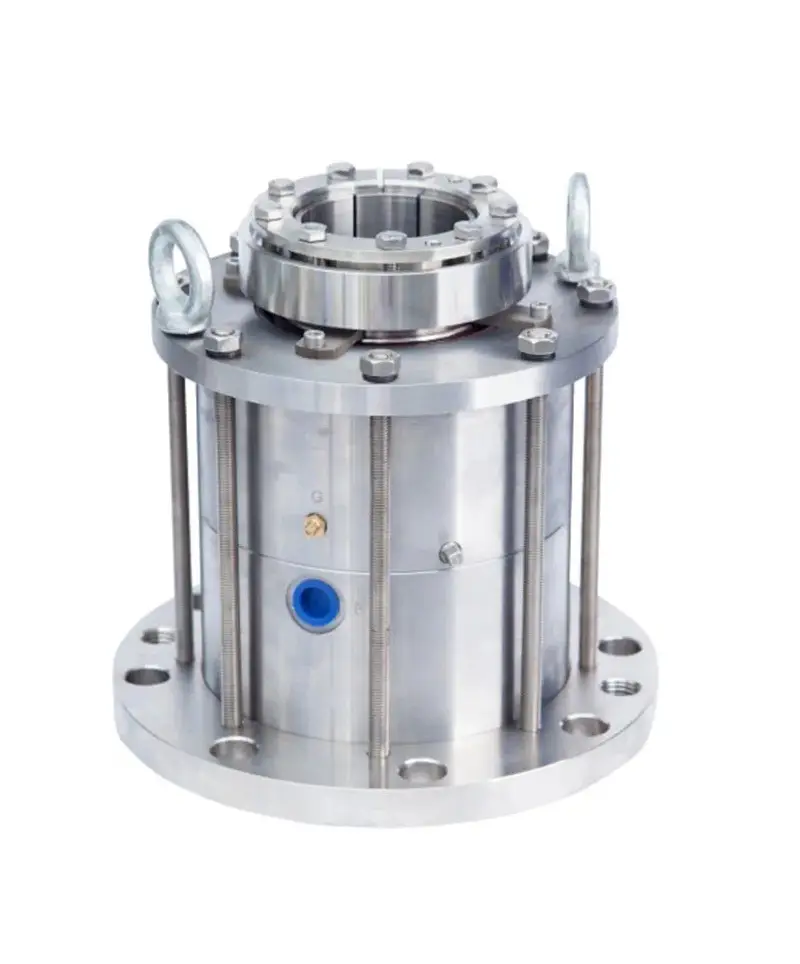

Cartridge Seal Systems for Simplified Maintenance

Cartridge seals are pre-assembled units that include all components—seal faces, gland plates, and sleeves—making them easier to install and maintain. These systems reduce installation errors, ensure proper alignment, and significantly cut down replacement time.

For top-entry agitators, cartridge seals offer the added benefit of modularity. Their design allows for quick change-outs without complex disassembly of the agitator drive system. They also support CIP and SIP compatibility, making them ideal for industries with strict hygiene standards.

Design Enhancements That Prevent Downtime

Integrated Bearing Supports

One of the most effective ways to improve seal reliability in top-entry agitators is the integration of bearing supports within the seal housing. These supports help manage shaft loads and reduce the radial and axial movement that typically causes premature seal wear.

By stabilizing the shaft near the sealing interface, integrated bearings prevent misalignment and vibration. This feature is particularly important in large tanks or when processing viscous or abrasive materials, where load-induced shaft motion is more pronounced.

Dry Running and Emergency Conditions

Dry running occurs when the seal faces operate without lubrication, often during startup, low-fill conditions, or unexpected process interruptions. In top-entry agitators, this can cause rapid face wear, overheating, and seal failure.

Selecting seals with dry-running capabilities or integrating dry-run protection systems like temperature or pressure sensors helps prevent damage. Some advanced seal materials—such as carbon-graphite or silicon carbide—have excellent self-lubricating properties and can tolerate short periods of dry operation without degradation.

Preventive Maintenance Strategies

Scheduled Inspections and Predictive Monitoring

Regular inspection schedules help identify early signs of seal wear or process misalignment. For top-entry agitators, monitoring for vibrations, shaft movement, or minor leaks can prevent larger failures. Implementing a maintenance routine based on data collected from sensors allows teams to make informed decisions and avoid emergency shutdowns.

Predictive maintenance tools like wireless temperature monitoring or vibration analysis systems offer continuous updates on seal conditions. These technologies are especially useful in automated production lines where access to the agitator is limited.

Cleaning and Sterilization Considerations

For industries requiring CIP or SIP, selecting seals that can tolerate frequent cleaning is essential. Some seals are not designed to withstand high temperatures or aggressive chemical cleaning agents, and using them in these conditions leads to early failure.

Seals with FDA-approved or USP Class VI materials provide durability and regulatory compliance in hygienic settings. Design features such as smooth surfaces, drain ports, and vented cavities further improve cleanability and eliminate residue build-up near the sealing interface.

Long-Term Reliability Through Proper Seal Selection

Matching Seal Design to Process Parameters

Every mixing process has its own set of conditions, including speed, viscosity, pressure, and batch cycle frequency. To avoid downtime, the agitator seal must be matched precisely to these variables. Underspecifying a seal results in early failure, while overspecifying leads to unnecessary costs.

Engaging with seal specialists during system design ensures that the chosen solution aligns with the operational profile of the top-entry agitator. Custom seal configurations may include unique face geometries, specialized spring arrangements, or hybrid material combinations to meet precise application needs.

Working with Experienced Seal Providers

Collaborating with sealing experts ensures that every factor—from installation support to spare part management—is covered. Top-entry agitators have unique sealing challenges, and working with a knowledgeable supplier enables faster troubleshooting, accurate diagnostics, and performance optimization.

Our team offers tailored solutions for top-entry agitators, focusing on long-term reliability and minimized maintenance cycles. By integrating customer feedback and process data, we continuously improve seal design and adapt to evolving industry requirements.

FAQ

What causes seal failure in top-entry agitators?

Seal failure is often caused by axial shaft movement, dry running, thermal cycling, and misalignment. Poor installation and material incompatibility with process fluids are also common contributors.

How do cartridge seals benefit top-entry agitator systems?

Cartridge seals simplify installation, reduce human error, and offer quick maintenance. Their pre-assembled design ensures proper face alignment and compatibility with top-entry configurations.

Are double mechanical seals necessary in all top-entry agitators?

Not in all cases, but they are recommended for hazardous, high-pressure, or hygienic processes. Double seals provide enhanced protection and reduce the risk of contamination or environmental release.

Can top-entry agitator seals handle CIP and SIP processes?

Yes, if they are designed with appropriate materials and features. Seals with FDA- or USP-compliant elastomers, thermal-resistant components, and smooth surfaces can endure CIP and SIP conditions effectively.
